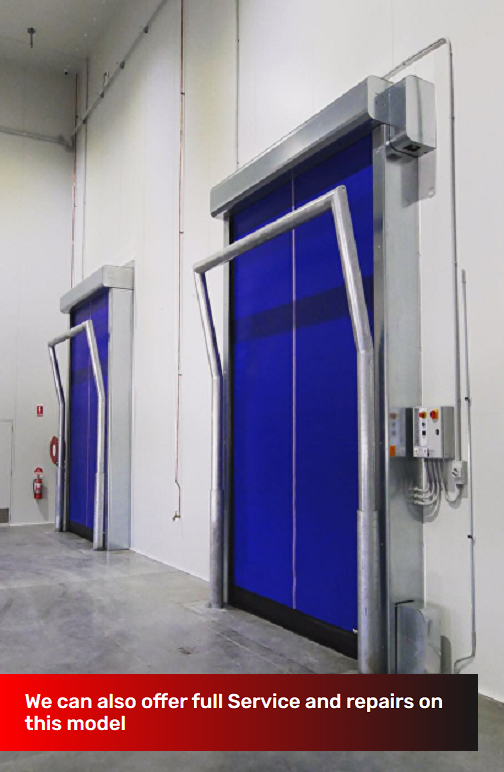

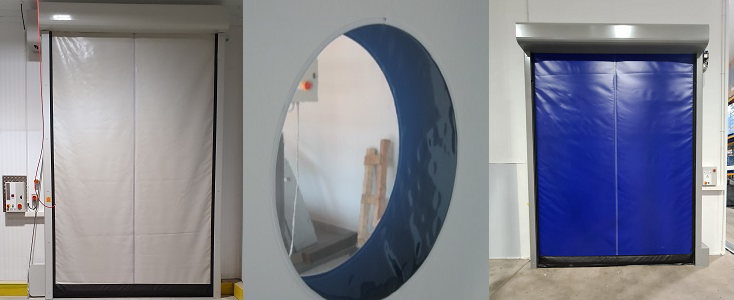

The DNA Products ColdSpeed is a self-repairing roll up door equipped with 2 curtains without any rigid elements. A 200mm divide between the curtains in the closed position creates and insulated air space.
This makes the ColdSpeed ideal for refrigerated areas where it is important to separate environments with a positive or negative temperature. This avoids condensation and ice build-up which can be dangerous for workers and can impede the operation of the door itself.
The ColdSpeed can be installed in both positive and negative temperatures and it's a guaranteed of safety for workers and means. Thanks to the non-rigid curtains and the sliding self-repair system if a collision occurs the curtain leaves the guide to prevent damage. Once the door is in the open position it will begin to close and automatically reinsert itself.
Specification
Specification
Frame/Motor Cover - Hood
Standard: Galvanized SteelOptional: Powder coated Steel
Stainless Steel 304/316
Control Panel
Power supply 3-ph, 230 V
Power supply 3-ph + N 380 V
Inverter system 50/60 Hz with absolute encoder
IP rating for motor and control panel IP54
Safeties
Standard: Photocells set IP65
Anti-jam sensor reverse
Wi-Fi safety edge IP65
Optional: Multi ray light curtain barrier
H2500 IP67
Heating Kit
A: Heater on electrical components and mechanical, heating cable 30W ml
B: Heater in air space with warm air blower
3,7 KW max.
Motor
The Motor can be supplied for left or right-hand operation depending on where the door is being installed
Maximum Dimensions
6000mm W x 7000mm H
Max. Opening Speed
up to 1.8m/s
Max. Closing Speed
0.8m/s
Curtain
Standard: PVC curtain 900 gr/m2
Wind Resistance
Class 2Structure
Not self-supporting
Wiring
Plug and Play system IP65
Cycles (EN12604)
1.000.000 (tested)
Application
Internal
Info
Self Repairing
Opening Options
- Induction Loop Inside/Outside Included: 100mts flexible cable 1 mm thickness
- Radars Inside/Outside
- Pull Cord Inside/Outside Support and 5m cord included
- Remote Controls/Receivers
- Clearwave - Non-touch opening device for hygienic areas
Think Safe
All doors are supplied with a crank handle as standard for use in case of a power cut. A stop is activated for safety purposes, so the door cannot be used while the handle is in place. A Hand chain can be supplied if requested. A UPS Battery can also be fitted to maintain power during a power cut. This should be enough to activate the door a couple of times if needed.
Advantages
- Induction Loop Inside/Outside - Included: 100mts flexible cable 1 mm thickness
- Radars Inside/Outside
- Pull Cord Inside/Outside Support and 5m cord included
- Remote Controls/Receivers
- Clearwave - Non-touch opening device for hygienic areas
Applications
Double curtains door ideal solution for:
- Refrigeration industry
- Ideal to manage high temperature differences even without a humidity-controlled system.
Time Saving
Installation is quick and easy as the Motor, Control Panel and Encoder cables are pre-wired into plugs for fast and simple connection on site.
