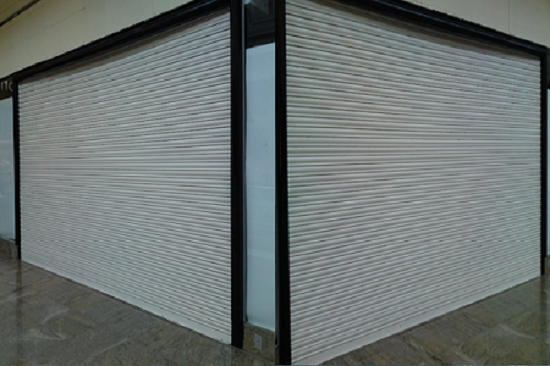

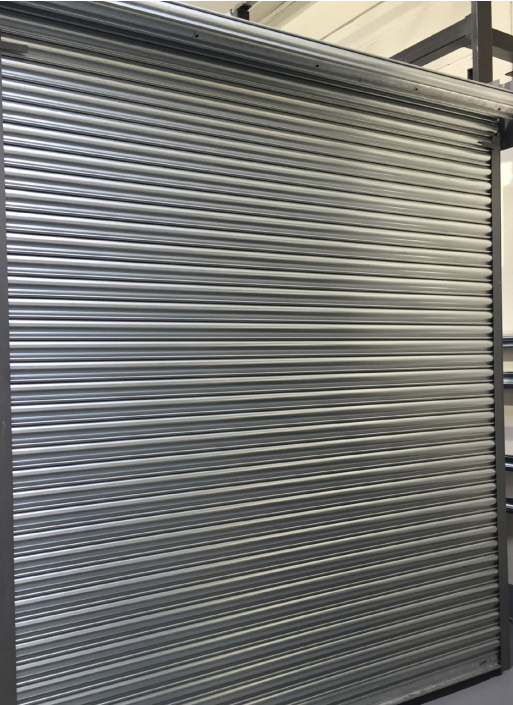

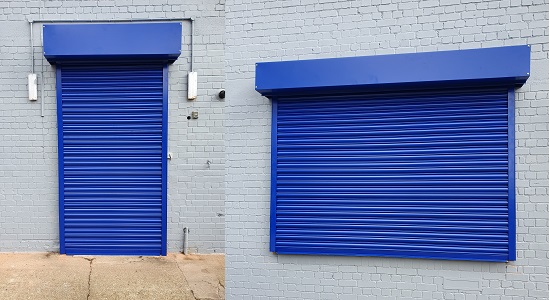

The DNA Products Tube Op Roller Shutter is ideal when there is restricted space for installation as the motor is inside the barrel. The tube motor is best suited to Roller Shutters used as a security measure when the number of openings per day is low.
It is operated via a 240V single phase tubular motor drive system. Emergency operation is via a manual hand crank fitted as standard.
The curtain is made up of 75 mm curved galvanized steel interlocking laths with hard wearing nylon or steel end locks.
It is finished with an inverted ‘T’ section galvanized bottom rail.
Applications
For internal, external or reveal fit. A maximum size of 29m2 applies to tubular motor shutters, Direct Drive Roller Shutters can be offered for larger openings.
Suited to commercial applications.
Finish
Galvanised finish as standard. Optional plastisol or powder coated finishes are available on request.
Motor Details
Electrically operated rolling shutter is operated via a 240V single phase tubular motor drive system.
Emergency operation is via a manual hand crank fitted as standard.
Curtain
77 mm curved galvanized steel interlocking laths with hard wearing nylon or steel end locks. The curtain is finished with an inverted ‘T’ section galvanized bottom rail.
Tube Op Roller Shutter Info
Side Guides
Barrel
Constructed from high quality mild steel tube with an integral motor with supporting shafts.
Roller Barrel Mounting
Gantry brackets are fabricated from steel angle. Channel and steel flat bar. The motor and bearings sit in position with the brackets.
Safety
In accordance with current legislation, doors come with integrated safety brake to prevent door from falling in event of motor failure. CE compliant to all applicable directives and regulations.
Controls
Double curtains door ideal solution for:
- Refrigeration industry
- Ideal to manage high temperature differences even without a humidity-controlled system.
Optional Extras
Plastisol lath
Powder coating to our standard RAL or BS range Perforated lath
Heavy duty ‘D’ section rubber bottom strip
Top brush strip
Remote control

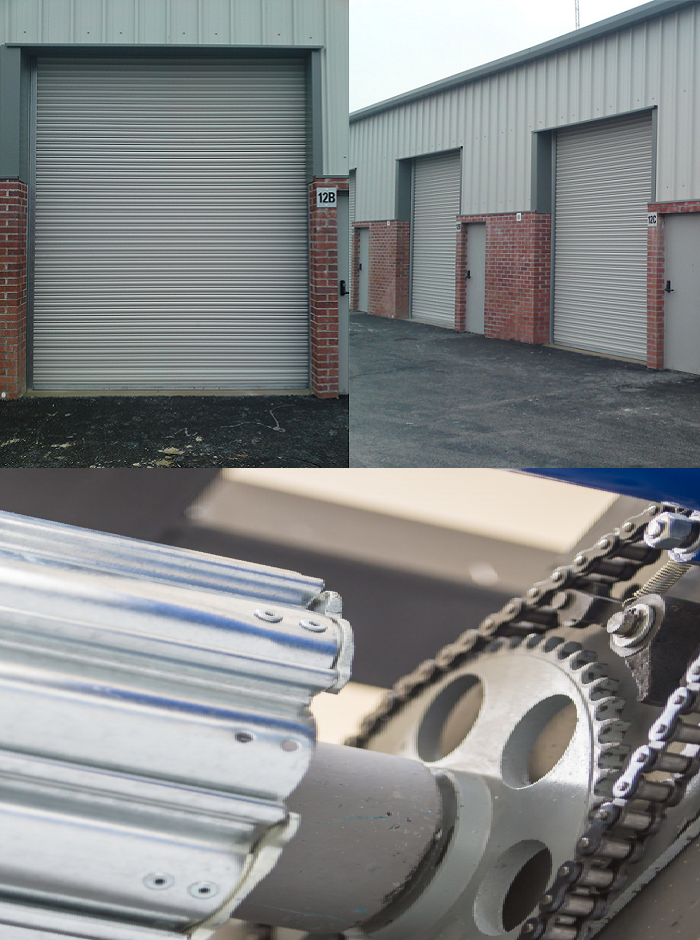

The DNA Products Direct Drive Roller Shutter requires no drive chain, no barrel tensioning and no isolator. This means that installation is much easier and is also extremely safe.
DNA Products Direct Drive Roller Shutters are pre-wired for easy installation and include a 3 phase E & N inverter plug allowing polarity to be changed easily and safely.
A 16-amp socket must be provided within 1 metre of the motor drive side of the door 1500 mm from finished floor level.
Detailed installation instructions are available upon request.
Design and Installation
Doors supplied up to 6500 mm W x 6500 mm H, flag guide set up as standard.
High quality bearings - the shaft does not run in direct contact with rough castings. Our Direct Drive Roller Shutters are pre-wired for easy installation and include a 1 Ph 3 pin CEE plug or 3 Ph 5 pin CEE plug. A 16-amp socket must be provided within 1 metre of the motor drive side of the door 1500 mm from finished floor level.
Motor Details
Industrial 3 Ph 230/400v or I Ph 230v motor.
Motor protection class: IP65
Cycles per hour: 8 - 20 (dependant on shutter size & phase)
Emergency hand chain (operable from floor level).
Fully pre-wired control panel c/w open/stop/close push button control.
Low level 24-volt control.
Auto close function (optional)
Photocell connections (optional)
Impulse and deadman operation as standard
Safety edge connections without additional relay(optional).
Radio control with timed return (optional).

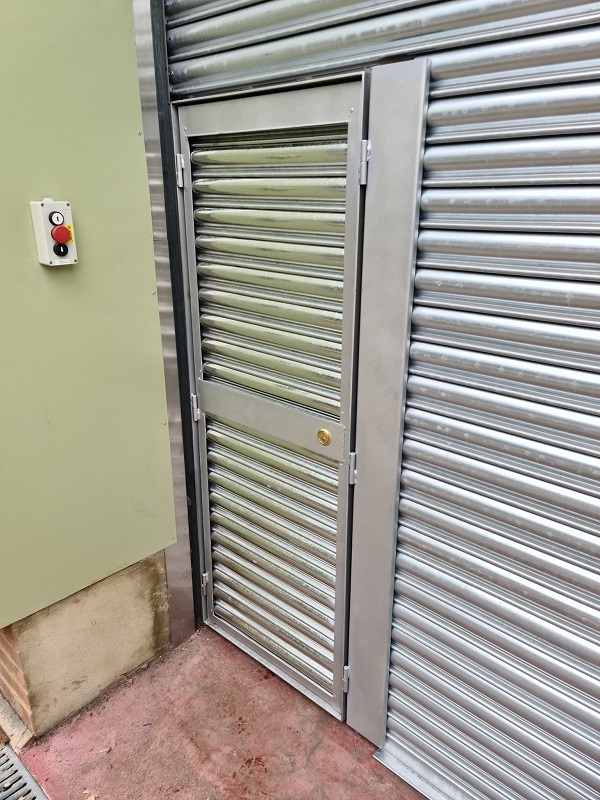

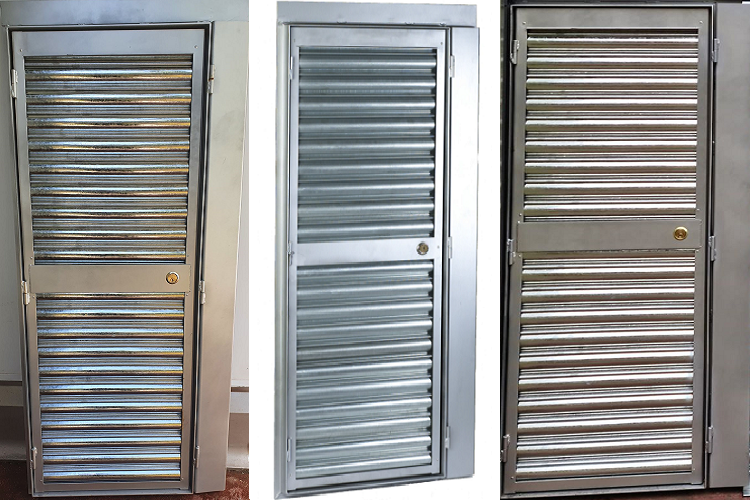

The DNA Products Standard Wicket Gate can be fitted to your existing Roller Shutter and is very easy to use. If there are no other access points nearby the Wicket Gate will allow pedestrians a more convenient method of entering without having to open your Roller Shutter Door. This can save time and money and prolong the life of your Roller Shutter in the process.
When installed within a Roller Shutter Door, the Wicket Gate does not roll up as it has a solid frame. This means that you must open the Wicket Gate frame back in order for the Roller Shutter to operate.
Our Wicket Gates can be installed on the left or right of the Roller Shutter Door. Each unit comes complete with a safe and secure mortice locking system.
Our wicket gates are manufactured from quality precision profiled steel sections.
The frame is welded and painted with a high-quality grey paint.
The inner outward opening leaf is infilled with 75mm galvanised interlocking lath to match the roller shutter curtain and is fitted with a Yale cylinder and rim latch.
The outer frame comes with 2 heavy duty hinges and pins for attachment to the wall or door guide.

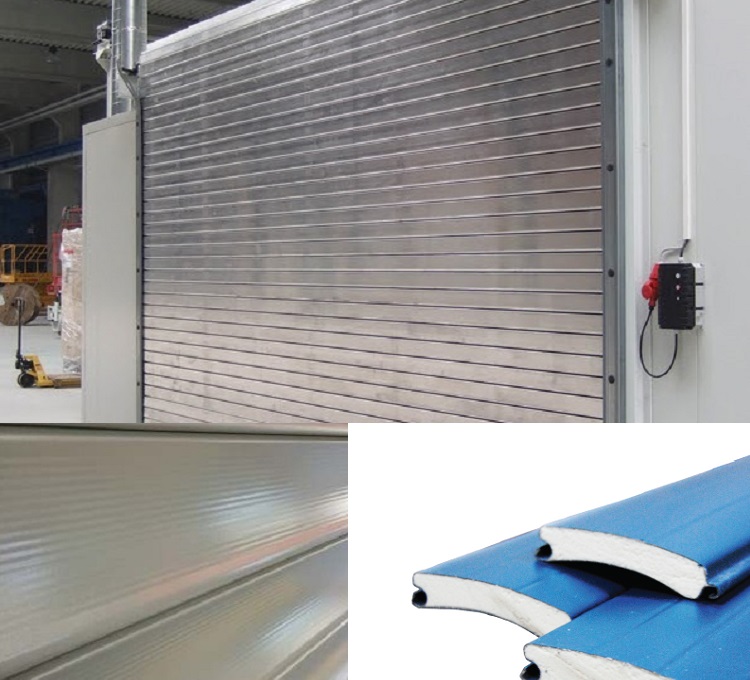

Insulated Roller Shutters
Applications
Ideal for commercial and industrial sites where improved insulation is required from a shutter capable of protecting a large door opening.
Can be used as a fast action door with the addition of a frequency inverter motor.
Roller Curtain
Curtain is constructed from double skinned 95mm galvanised steel slat with polyurethane insulating core.
Slat U value Weight per m2
1.1 W/m2 ˚K 12.8 kg Max
Casing
Galvanised steel as standard.
Guide channels
Galvanised steel with brush seal.
Insulated Roller Shutter Info
Bottom Rail
Operation
Single Phase tubular motor with emergency manual crank handle. Industrial single or 3 phase direct drive motor with emergency manual chain override
Maximum Sizes
Tube motor:
Max width 7000mm -> Max area 20m2
Direct drive industrial motor:
Max width 8000mm -> Max area 35m2
Seals
Bottom rubber seal and top brush seal.
The guides come complete with neoprene brush seals mounted to both inner faces of the guide.
Roller Barrel
Mild steel tube with diameter and wall thickness is used to achieve 1:400 deflection to suit each individual contract.
The barrel is fitted with discs and shafts, mounted into bearing(s) and the motor.
Roller Barrel Mountings
Gantry brackets are fabricated from steel angle. Channel and steel flat bar. The motor and bearings sit in position with the brackets.
Safety
In accordance with current legislation, doors come with integrated safety brake to prevent door from falling in event of motor failure. CE compliant to all applicable directives and regulations.
Finish Options
Casing, guides and bottom rail can be polyester powder coated to RAL colour
Options
Push button activation.
Key switch activation.
Remote control.
Safety bottom edge. Safety light curtain.
Vision slats.

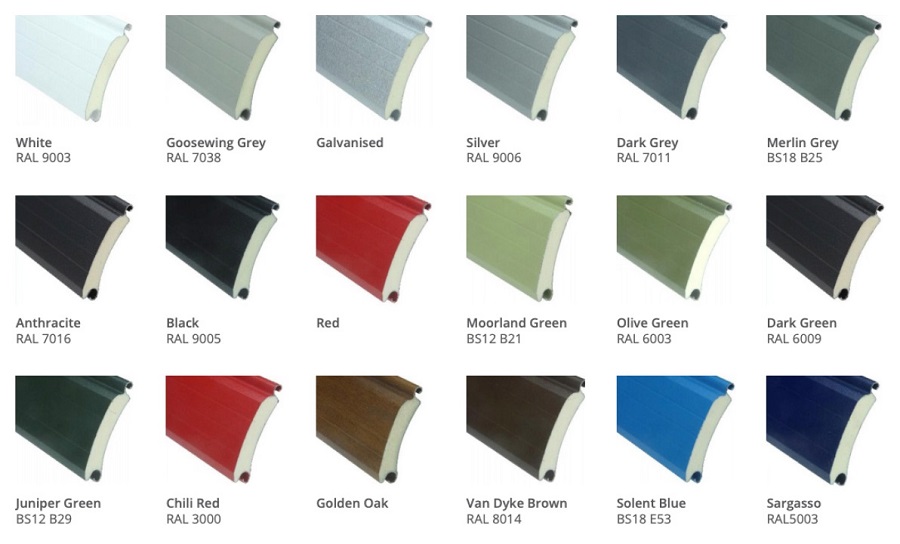

Colours Available
Plastisol (see Colour Chart below) or polyester powder coat to RAL colour

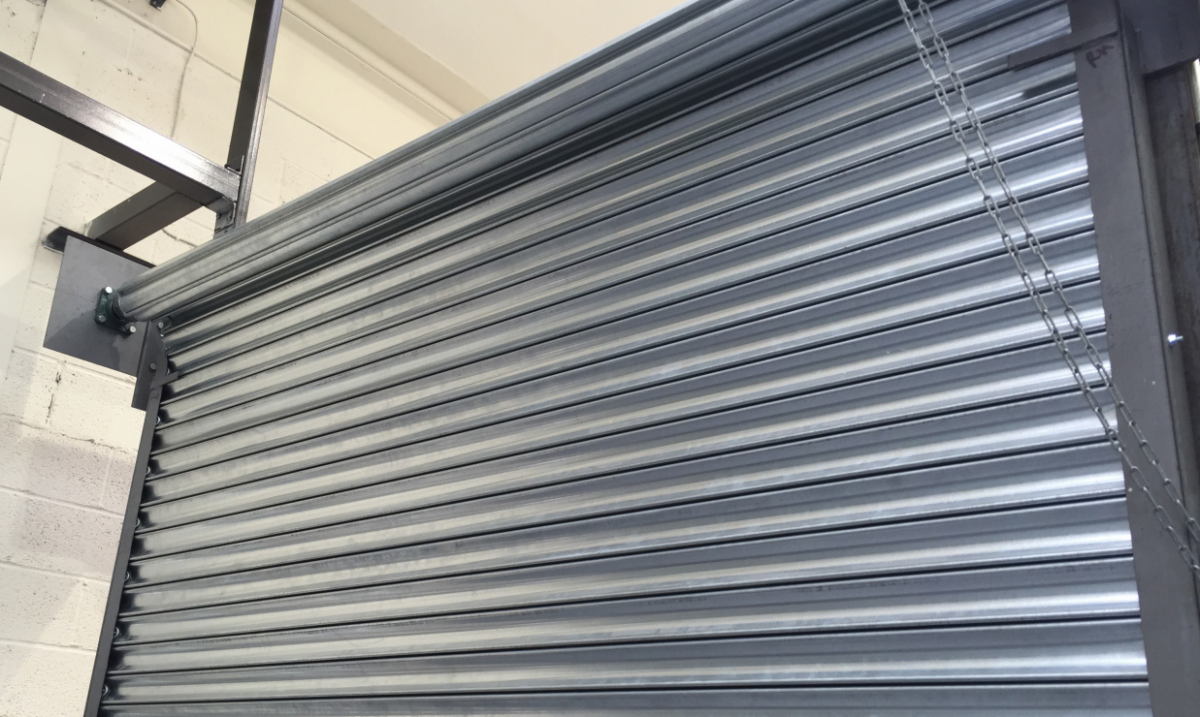

Fire Rated Roller Shutters
DNA Products Fire Rated Roller Shutters are individually designed and manufactured to suit the specific opening. Shutter curtains are constructed from high performance interlocking laths and a tee section bottom rail running in side channels and fixed to the structure.
The curtain is hung from a high-level tube barrel and rotates on high quality bearings. A polyester powder coat to most BS or RAL colours is available as an option. Our Fire Rated Roller Shutter doors have been designed to comply with the requirements of section 8 BS 476: Part 22: 1987 as tested by BRE Fire Research Centre No. TE 84510 with LPCB approval and certification for up to sixty minutes fire protection.
Application
Warehouses
Supermarkets
Public Buildings
Utilities & Factories
Distribution Centres
Hospitals & Museums
Waste Handling Stations
Retail & Shopping Centres.
Fire Rated Roller Shutter Info
Curtains
Guides
Formed from rolled steel, vertical guides are specified according to the size of opening. They are supplied with suitable angles for fixing to the structure.
Endplates
Barrel
The barrel is constructed from high quality steel tube of varying diameters and wall thickness. Exact dimensions are dependent upon overall door width and height. The barrel also contains a bright steel shaft with a minimum diameter of 25 mm up to a maximum of 80 mm.
The counterbalance spring arrangement is captivated by using a combination of machined blocks and bearings.
The barrel is fully supported on mild steel cups that are securely attached to the endplate assembly.
Hood (Optional)
A profiled galvanised sheet steel hood is included as standard. An optional fascia can be fitted where required.
A hood support bracket may be required; this depends on the fire rating and the size of the opening.
Solenoid release linking to fire alarm
A solenoid is incorporated to be linked into the fire alarm (by others) using a 24-volt DC supply.
On receipt of an incoming fire alarm signal the door will close under controlled descent.
Note, If the signal from the fire alarm is volt-free an audio-visual warning panel will be required.
Electrical operation
Suitable for all sizes of shutter, the motor is either single phase (240 Volt, 50 Hz) or 3 phase (415 Volt, 50 Hz) dependant on size of door or customers requirement.
A controlled descent of 100mm per second (approx.) is an inbuilt safety feature. In the event of power failure, manual override is
achieved by pulling a pull cord to close the shutter under controlled descent and a hand chain to open.
The hand-chain override is designed for emergency use only.
As standard each shutter includes controls to the Control Panel only. This is to be fitted at high level to prevent unauthorised tampering.
Other control options are available on request.
We strongly recommend that shutters exceeding 16 metres square should be electrically operated.
Fire Resistant Roller Shutters

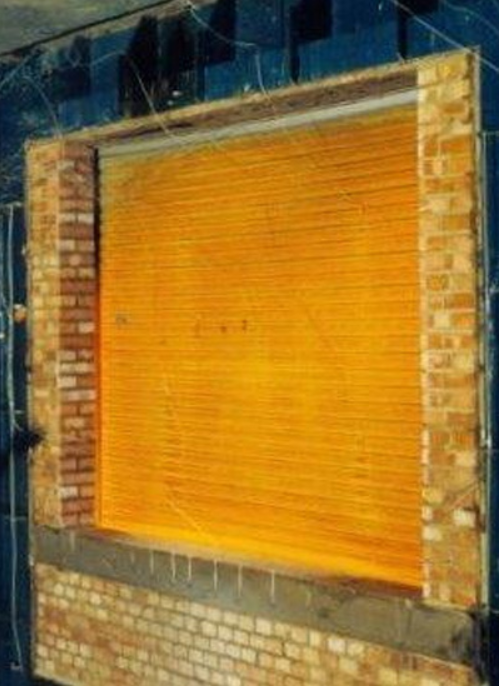

The DNA Products Fire Resistant Roller Shutter Door has been tested in accordance with BS476: part 22: 1987 and is assessed to a maximum width of 7000 mm and maximum height of 7000 mm to give up to two hours fire protection. These assessments were undertaken to the Loss Prevention Council guidelines, test report number TE 92440.
Not only do they slow down the spread of a fire through a building, but they also reduce the spread of smoke from room to room, which can be just as much of a killer as the fire itself.
The shutter curtain is constructed from interlocking galvanised steel laths and a heavier duty manufactured bottom rail, running in steel side channels, mounted on mild steel support angles which are bolted to the structure.
The curtain weight is supported from a suitable steel tube barrel assembly at high level, running on steel bearings. The barrel assembly is supported between mild steel endplates in a flag guide arrangement and driven through gears. A galvanised steel coil casing and flame trap fascia are provided as standard.
Fire Resistant Roller Shutter Info
Application
Public Buildings, Utilities & Factories, Distribution Centres, Hospitals & Museums, Waste Handling Stations, Retail & Shopping Centres.
Curtains
Guides
63mm vertical steel guides are supplied with fixing angles for securing to the wall or frame.
Barrel
The steel tube barrel can vary in
diameter depending on the size of the door and the thickness of the wall or frame that it is being fixed to.
The shaft of the barrel sits in bearings situated on steel endplates fitted to the top of the guide angles.
Hood
Included as standard
Optional Extras
Galvanised motor covers (standard on doors less than 2600mm high).
Powder coated colour finish.
Warning sirens and beacons.
Manual re-set solenoids or Auto re-set solenoids. Battery back-up systems (single phase) with delay timers.
Activation
Manual operation by means of continuous galvanised haul chain for opening and a pull cord disengage device to give controlled descent on closing. Due to the gearing within the controlled descent operator, the manual operation is a slow process and is designed for occasional use only.
Electrical operation is by means of a high quality single or three phase-controlled descent operators. All controls are 24-volt low voltage and have open,
close and emergency stop button as standard.
Emergency manual override is provided as standard to allow operation of the door in case of power failure.
